A. Scope

This specification applies to Piezo buzzers,090032H-03627-1

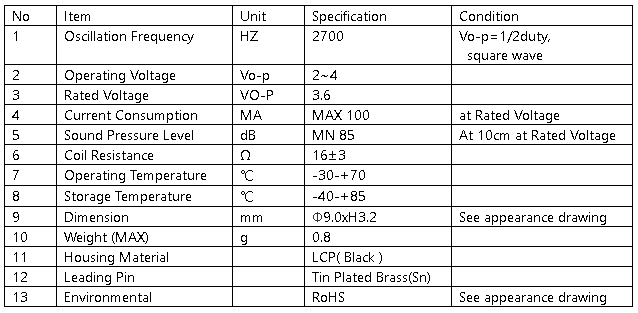

B. Specifications

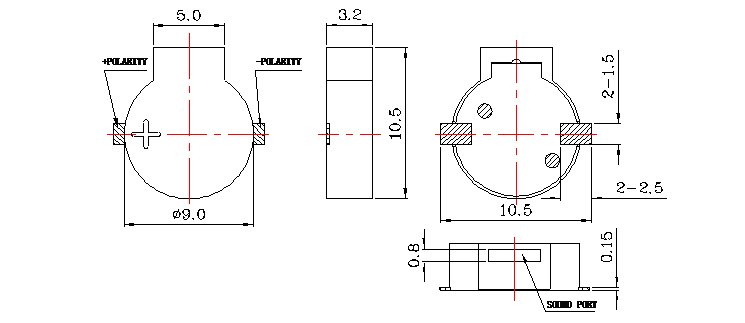

C. Exterior drawing

Tol: ±0.5 Unit: mm

D. Test method
Standard measuring condition
Temperature: 25±2℃ Humidity: 45-65%
Acoustic characteristics:


Oscillation frequency, current consumption and sound pressure are measured by the instrument shown below
In the measurement test, the buzzer is placed as follows:

E. Voltage/current/sound pressure characteristics

F. It is recommended that the drive circuit base current Ib should be high enough to saturate the collector current of the transistor under a CB load.


G. Welding conditions

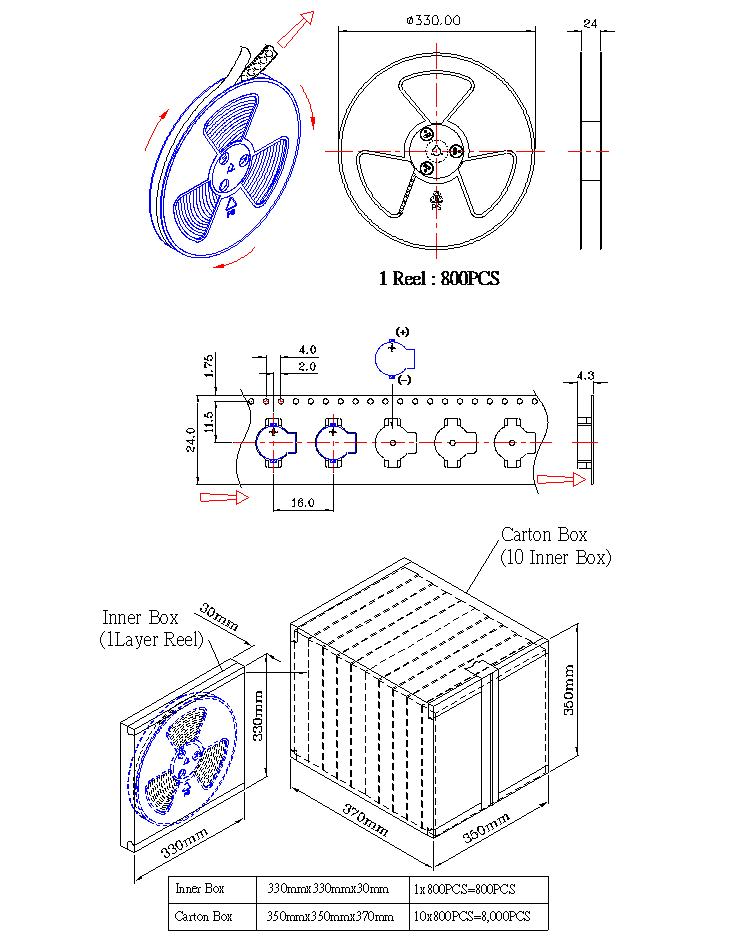

H. Packing standard:
