A. Scope

This specification applies to Piezo buzzers,090945F-03332

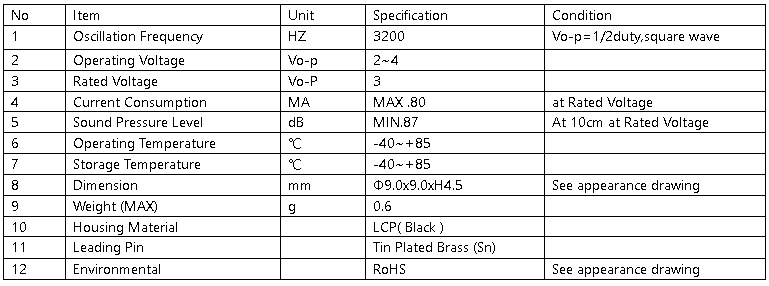

B. Specifications

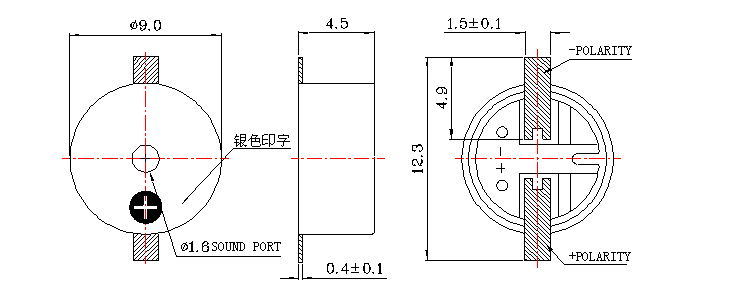

C. Exterior drawing

Tol: ±0.5 Unit: mm

D. Test method
Standard measuring condition
Temperature: 25±2℃ Humidity: 45-65%
Acoustic characteristics:


Oscillation frequency, current consumption and sound pressure are measured by the instrument shown below

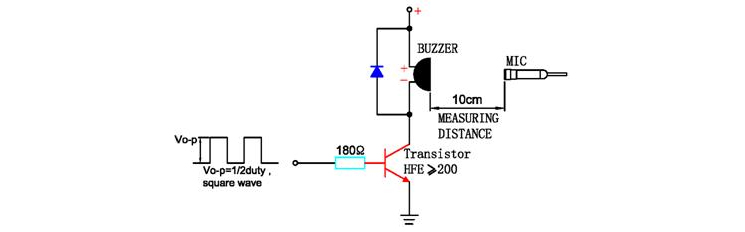

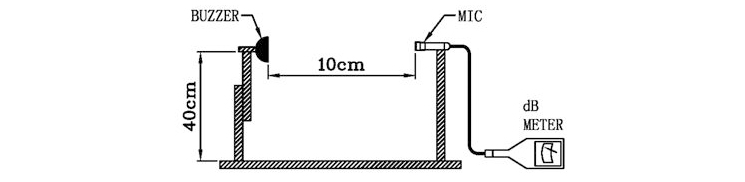

In the measurement test, the buzzer is placed as follows:

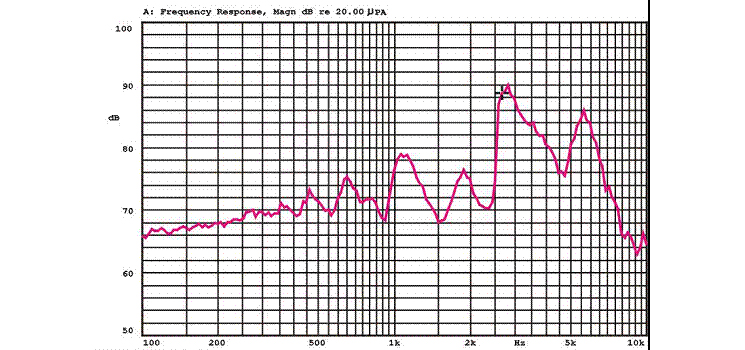

E. Voltage/current/sound pressure characteristics

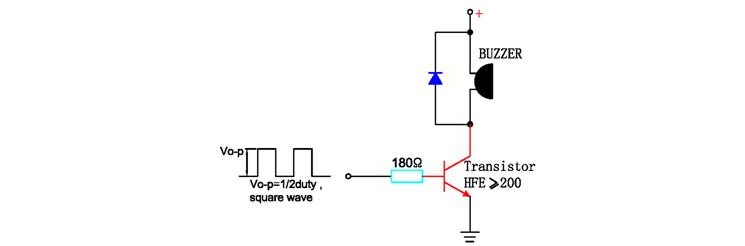

F. It is recommended that the drive circuit base current Ib should be high enough to saturate the collector current of the transistor under a CB load.

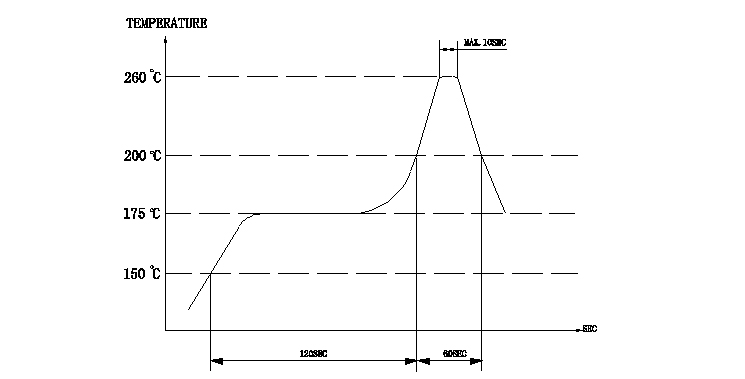

G. Welding conditions:

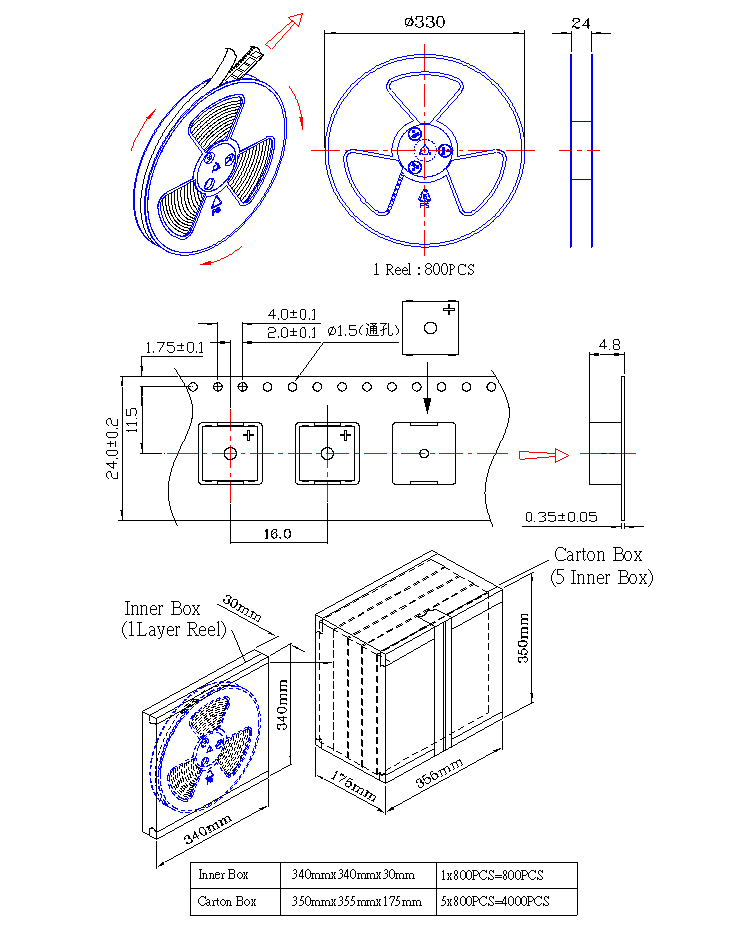

H.Packing standard:
