A. Scope
This specification applies to Piezo buzzers,096055F-03027D

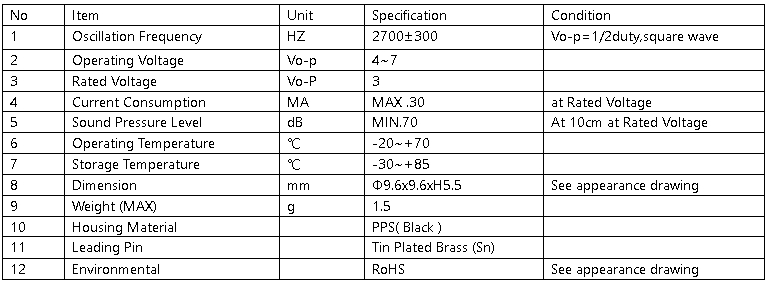

B. Specifications

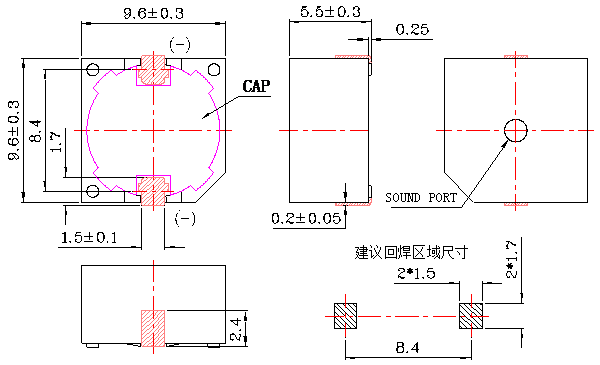

C. Exterior drawing

Tol: ±0.5 Unit: mm

D. Test method
Standard measuring condition
Temperature: 25±2℃ Humidity: 45-65%
Acoustic characteristics:

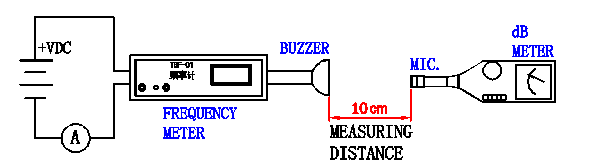

Oscillation frequency, current consumption and sound pressure are measured by the instrument shown below
In the measurement test, the buzzer is placed as follows:

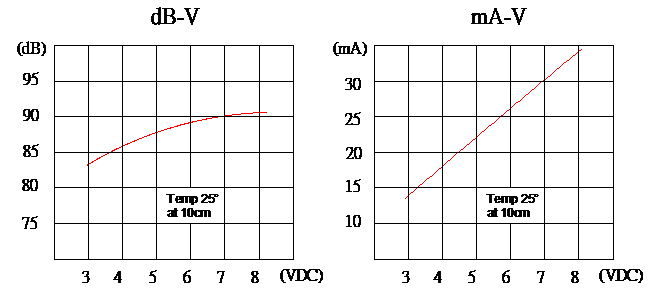

E. Voltage/current/sound pressure characteristics


F. Welding conditions:

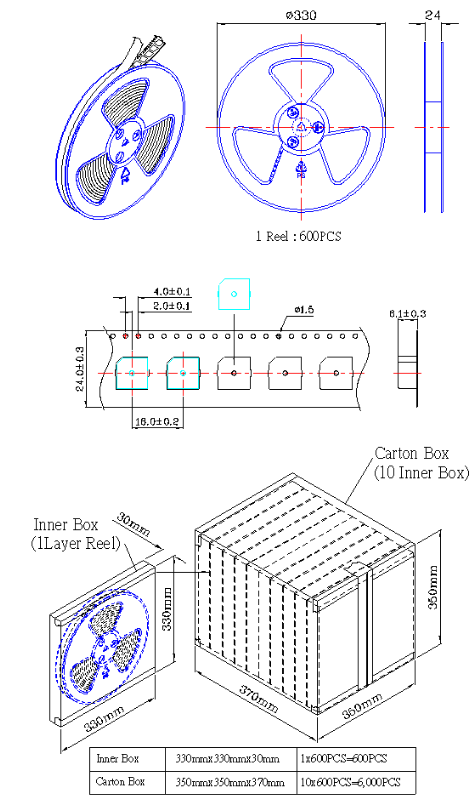

G.Packing standard:
