A. Scope

This specification applies to Piezo buzzers,125069F-12024CR140

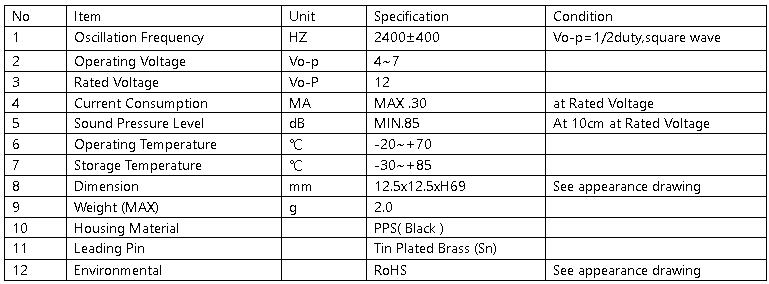

B. Specifications

C. Exterior drawing

Tol: ±0.5 Unit: mm
D. Test method
Standard measuring condition
Temperature: 25±2℃ Humidity: 45-65%
Acoustic characteristics:
Oscillation frequency, current consumption and sound pressure are measured by the instrument shown below

E. Voltage/current/sound pressure characteristics

F. Welding condition

G. Packaging standards
