A. Scope

This specification applies to Piezo buzzers,128100F-12144CDR140

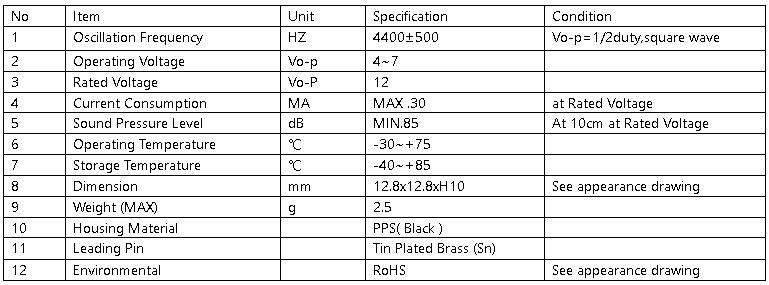

B. Specifications

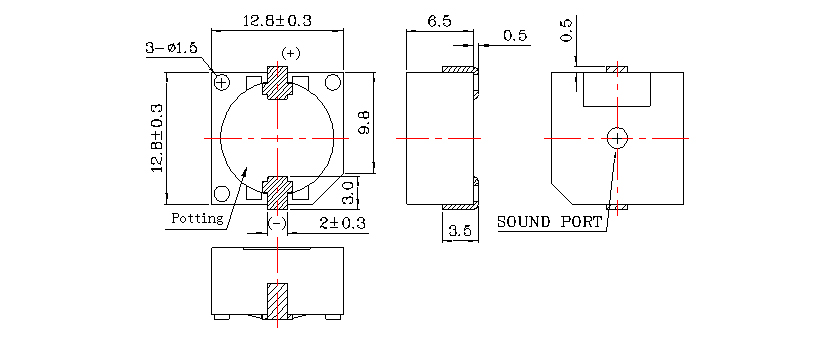

C. Exterior drawing

Tol: ±0.5 Unit: mm
D. Test method
Standard measuring condition
Temperature: 25±2℃ Humidity: 45-65%
Acoustic characteristics:

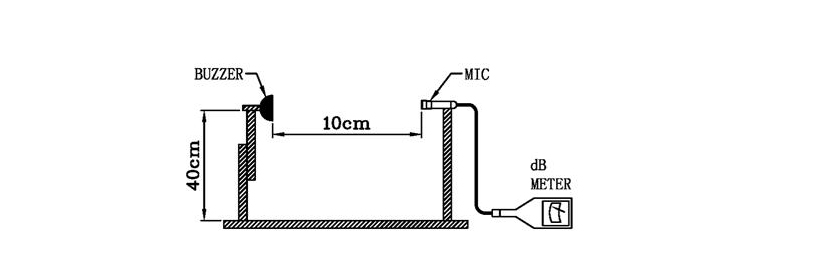

Oscillation frequency, current consumption and sound pressure are measured by the instrument shown below

E. Voltage/current/sound pressure characteristics

F. Welding condition

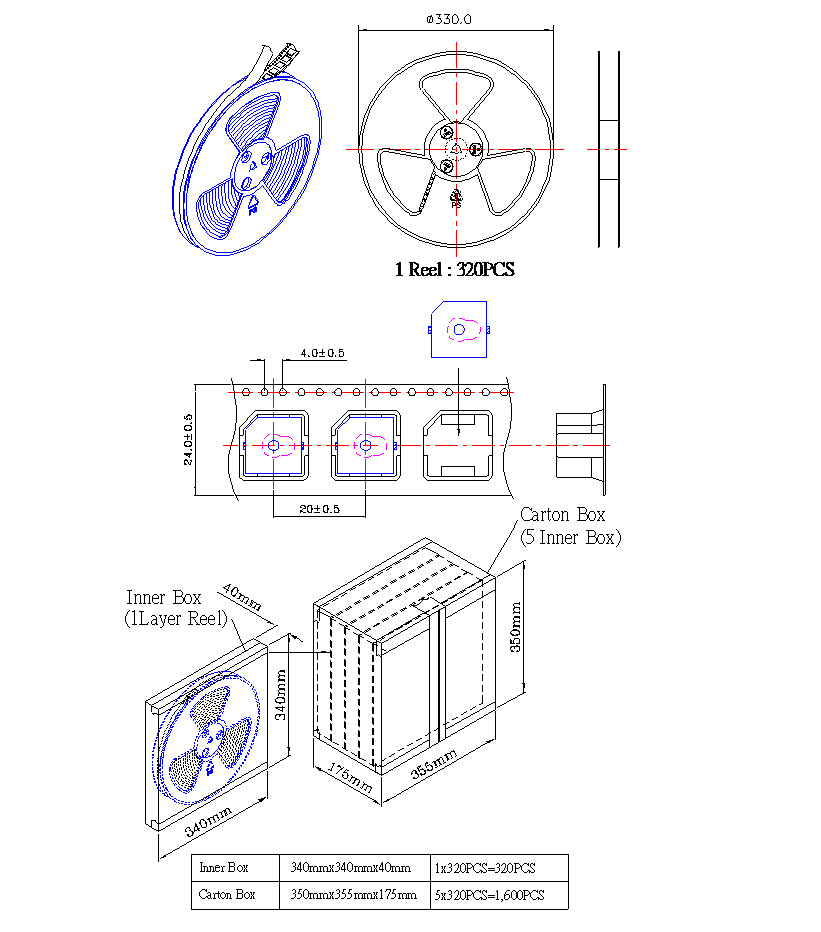

G. Packaging standards
