A. Scope

This specification applies to Piezo buzzers,150140F

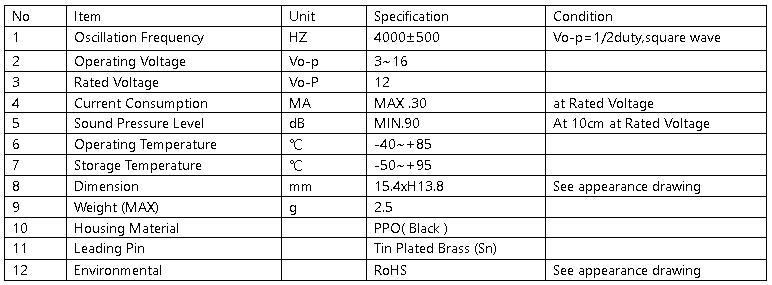

B. Specifications

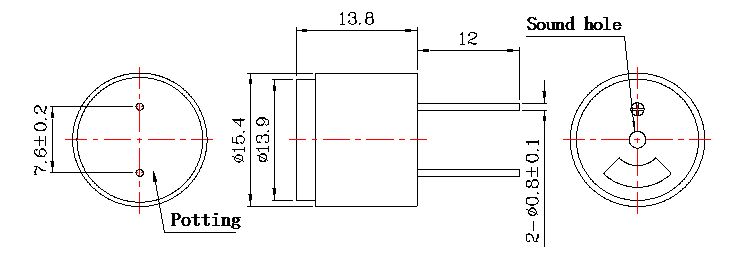

C. Exterior drawing

Tol: ±0.5 Unit: mm

D. Test method

Standard measuring condition

Temperature: 25±2℃ Humidity: 45-65%

Acoustic characteristics:

The oscillation frequency, current consumption and sound pressure are measured by the measuring instrument shown below.


In the measurement test, the buzzer is placed as follows:

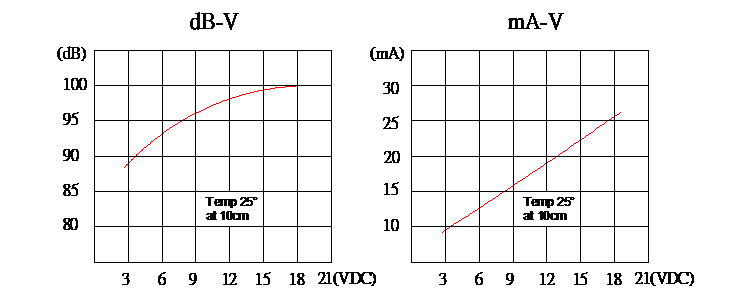

E. Voltage/current/sound pressure characteristics

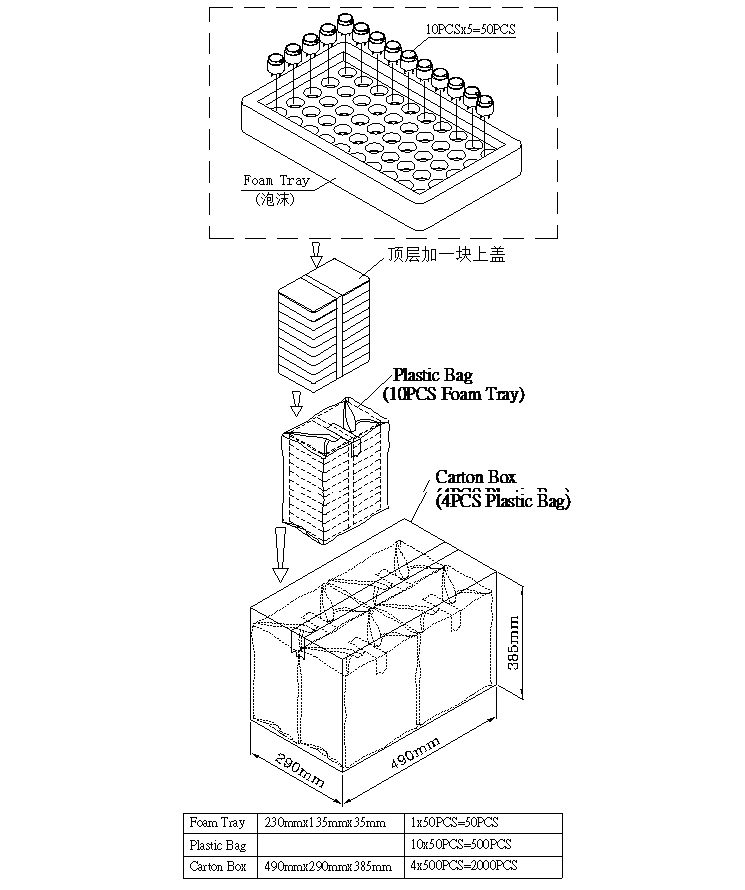

F. Packaging Standards
