A. Scope
This specification applies to Piezo buzzers,170080F-12040K
B. Specifications

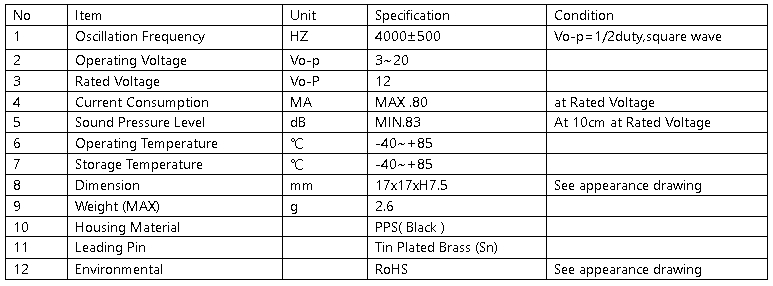

No | Item | Unit | Specification | Condition |
1 | Oscillation Frequency | HZ | 4000±500 | Vo-p=1/2duty,square wave |
2 | Operating Voltage | Vo-p | 3~20 | |
3 | Rated Voltage | Vo-P | 12 | |
4 | Current Consumption | MA | MAX .80 | at Rated Voltage |
5 | Sound Pressure Level | dB | MIN.83 | At 10cm at Rated Voltage |
6 | Operating Temperature | ℃ | -40~+85 | |
7 | Storage Temperature | ℃ | -40~+85 | |
8 | Dimension | mm | 17x17xH7.5 | See appearance drawing |
9 | Weight (MAX) | g | 2.6 | |
10 | Housing Material | PPS( Black ) | ||
11 | Leading Pin | Tin Plated Brass (Sn) | ||
12 | Environmental | RoHS | See appearance drawing |

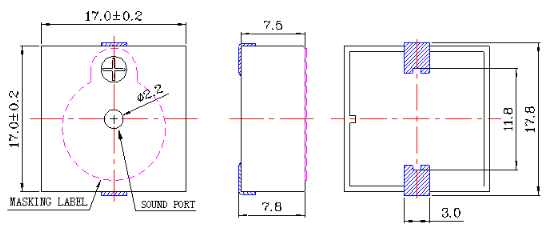

C. Exterior drawing
TOL: ±0.3 Unit: mm
D. Test method.
Standard measurement conditions.
Temperature: 25±2℃ Humidity: 45-65%.
Acoustic characteristics:

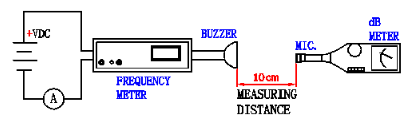

The oscillation frequency, current consumption and sound pressure are measured by the measuring instrument shown below

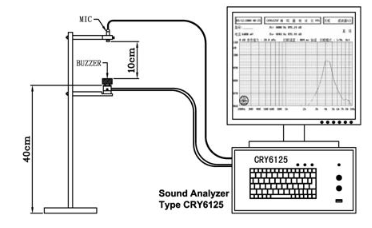

In the measurement test, the buzzer is placed as follows:

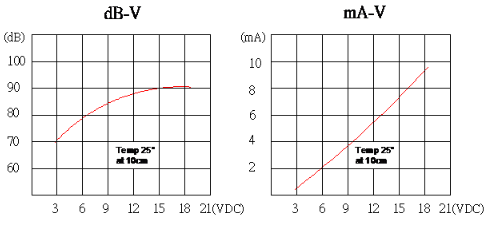

E. Typical frequency response curve:
F. Welding conditions:

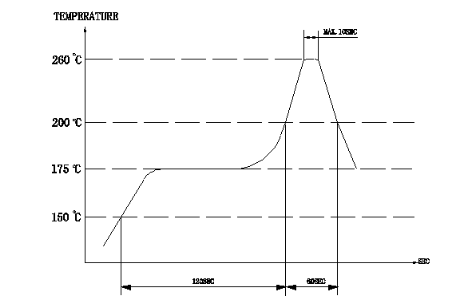

(1) Recommended reflow conditions are as follows.
(Reflow is twice).
Note: Reflow is required after the product heat drops to normal.
G. Packaging standard:
