A. Scope

This specification applies to Piezo buzzers,230092F-12033-1

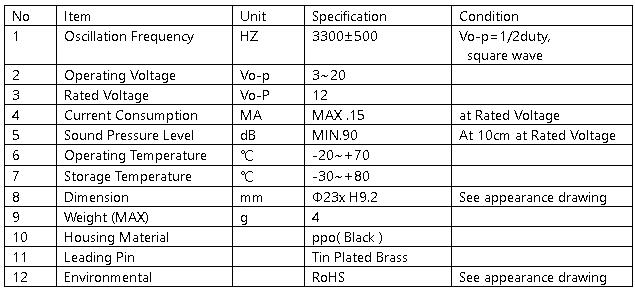

B. Specifications

C. Exterior drawing

Tol: ±0.5 Unit: mm

D. Test method

Standard measuring condition

Temperature: 25±2℃ Humidity: 45-65%

Acoustic characteristics:

In the measurement test, the buzzer is placed as follows:

E. Voltage/current/sound pressure characteristics

Test conditions. Standard test conditions: a) Temperature: + 5~ + 35℃b) Humidity: 45-85% c)
Pressure: 860-1060mbar Test conditions: a) Temperature: + 25±2℃b) humidity: 60-70% c) pressure: 860-1060mbar

F. Packaging standards
