A. Scope: This specification is applicable to piezoelectric buzzer FDT-210040F-03041W25

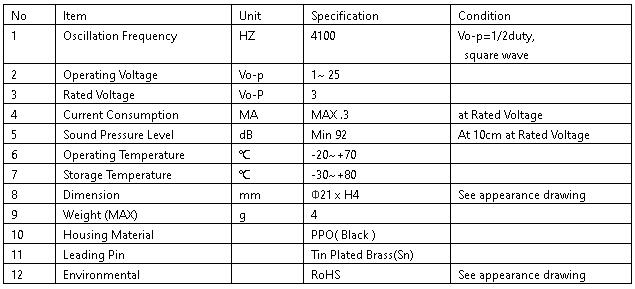

No | Item | Unit | Specification | Condition |
1 | Oscillation Frequency | HZ | 4100 | Vo-p=1/2duty, |
2 | Operating Voltage | Vo-p | 1~ 25 | |
3 | Rated Voltage | Vo-P | 3 | |
4 | Current Consumption | MA | MAX .3 | at Rated Voltage |
5 | Sound Pressure Level | dB | Min 92 | At 10cm at Rated Voltage |
6 | Operating Temperature | ℃ | -20~+70 | |
7 | Storage Temperature | ℃ | -30~+80 | |
8 | Dimension | mm | Φ21 x H4 | See appearance drawing |
9 | Weight (MAX) | g | 4 | |
10 | Housing Material | PPO( Black ) | ||
11 | Leading Pin | Tin Plated Brass(Sn) | ||
12 | Environmental | RoHS | See appearance drawing |
B. Specifications:

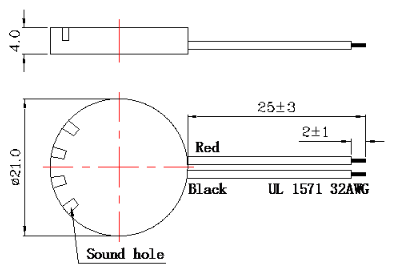

C. Appearance drawings:
Tol: ±0.5 Unit: mm
D. Test method
Standard measuring condition
Temperature: 25±2℃ Humidity: 45-65%
Acoustic characteristics:
Oscillation frequency, current consumption and sound pressure are measured by the instrument

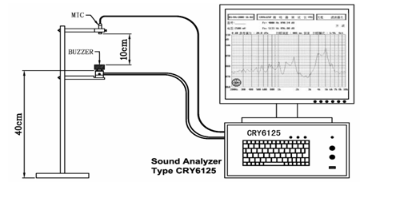

In the measurement test, the buzzer is placed as follows:

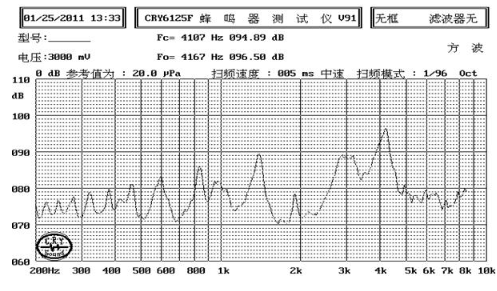

E.Voltage/current/sound pressure characteristics
